Brand Name : LEARNEW OPTO
Model Number : LN-SMD6064RGBWW-P2.5HX
Certification : CE/RoHs
Place of Origin : CHINA
MOQ : 5000
Price : Negotiable
Payment Terms : D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability : 500,000PCS per month
Delivery Time : 1-7 working days for samples, 1-4Weeks for quantity Order
Packaging Details : Anti-static Blister packing
NAME : 6064 SMD LED CHIP
POWER : 2.5W
IF : 150mA
VF : 2.5-3.5V
WHOLE SIZE : 6.0*6.4MM
LES : R5.0MM
VIEW ANGLE : 120°
CRI : >95
Custom made High Power Multi Chips 2.5W RGBWW 3000K/6500K/6000K Quality 6064 LED SMD
6064SMD LED CHIP Details
| PART NUMBER | POWER | CCT | LM/W | IF | VF | Circuit | WHOLE SIZE | LES | VIEW ANGLE | CRI | SUBSTRATE | CHIPS |
| LN-SMD6064RGBWW-P2.5HX | 2.5W | R=620-630nm G=520-530nm B=450-470nm WW=2700K-3000K CW=6000K-6500K | R=30-40lm/w G=70-90lm/w B=20-30lm/w W=90lm/w | 150mA | 2.5-3.5V | 1PCS in series 1PCS in parallel 5 circuit | 6.0*6.4MM | R5.0MM | 120° | >95 | PCT | Sanan |

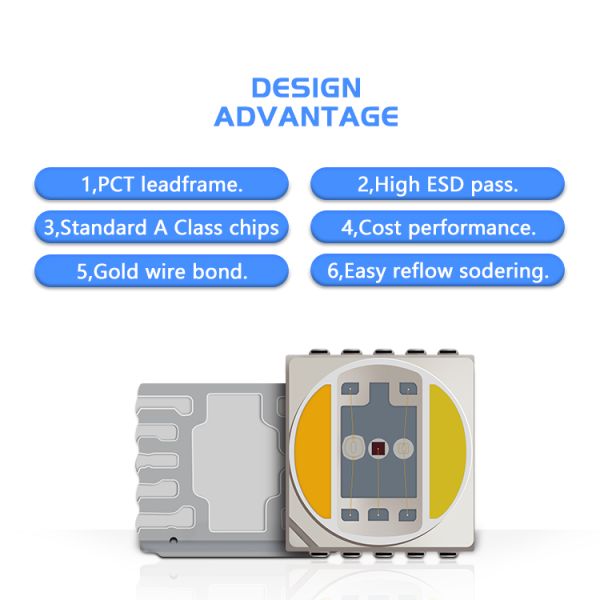

DESIGN ADVANTAGE
1,PCT leadframe.
 2,High ESD pass
 3,Standard A Class chips.
 4,Cost performance.
 5,Gold wire bond.
 6,Easy reflow sodering.
APPLICATION
1,LED stage light
 2,LED Photograpic lighting
RGBWW LED CHIP picture
