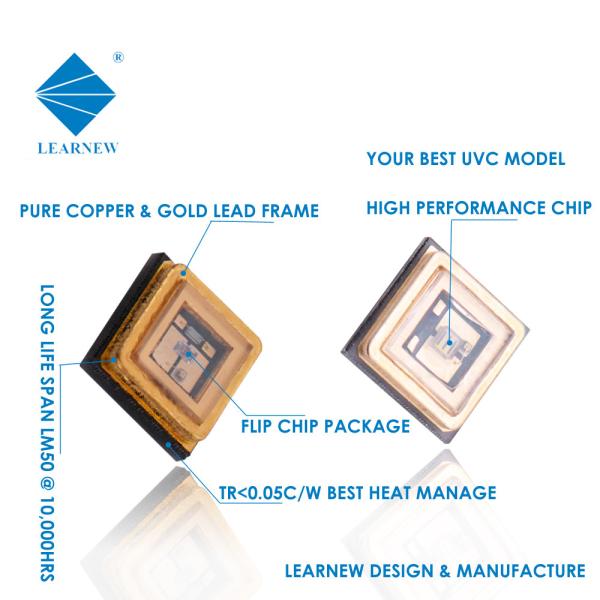

100mA 3535 Type Smd Uv Led 250-280nm Led Chip 1w 3w 10w 5-7V

Brand Name : Learnew

Model Number : LN-SMD3535UVC-P1

Place of Origin : China

MOQ : 1000

Price : USD 1.2 /Piece

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 5000000Pieces/month

Delivery Time : 15-30 work days

Packaging Details : We use a layer of waterproof material attached to the packaging box to prevent damage to the product

Product Type : UVC LED CHIP

POWER : 1W

Current : 100mA

Voltage : 5-7V

LENS : QUARTZ GLASS LENS

SUBSTRATE : ALN Coppering

VIEW ANGLE : 120°

Wavelength : 250-280nm

JUNCTION TEMPERATURE : 60℃

WHOLE SIZE : 3.5*3.5MM

Contact Now

UVC Led Chip 3535 Type Smd Uv Led 250-280nm Uv Led Chip 1w 3w 10w 5-7V

Specification
Product Type
UVC LED CHIP
Input Voltage(V)
5-7V
Current
50mA 100mA
Power
0.5W 1W
Warranty(Year)
3-Year
Lifespan (hours)
20000
Working Time (hours)
20000
Product Weight(kg)
0.5
Chip Material
INGAN
Emitting Color
UV
Viewing Angle(°)
120
Brand Name
Learnew
Wavelength
250-280nm
Application
ICU Hospital
Air purifier
Water purifier
Washing machines


100mA 3535 Type Smd Uv Led 250-280nm Led Chip 1w 3w 10w 5-7V

100mA 3535 Type Smd Uv Led 250-280nm Led Chip 1w 3w 10w 5-7V

100mA 3535 Type Smd Uv Led 250-280nm Led Chip 1w 3w 10w 5-7V100mA 3535 Type Smd Uv Led 250-280nm Led Chip 1w 3w 10w 5-7V

WHAT IS UV?

Ultraviolet (UV) radiation is electromagnetic radiation of a wavelength shorter than that of the visible
region and longer than that of X-rays.

As air is opaque to UV radiation of less than 200nm wavelength, it is often subdivided into:
Near UV (380-200nm wavelength)
Extreme or Vacuum UV (200-10nm)

More commonly, when used in connection with human health and the environment, it is subdivided into:
UV-A: 315-400nm
UV-B: 280-315nm
UV-C: 250-280nm
In respect of UV curing there is also UVV (UV visible, 400-450nm). As the name suggests, UVV extends into the visible light spectrum.

WHY CHOOSE US
Learnew LED's Advantage

Never worry about our PRODUCT QUALITY;
Good Raw Material used and strict production process controlled
Famous Branded Chips 99.9%Purity Gold Wires
Original genuine Bridgelux,Epistar,Osram,Epileds,San'an chips...
High lumen,strong anti-static ability,good consistency.. High conductivity,good toughness, good stability..
Red Copper Lead Frame NarrowBinning&Voltage Sorting
High conductivity>400w/mk and thick silver coating: 80-120u One or two binning available,SDCM<3or 5 step ,0.1Vvoltage sorting available
We can offer ANY LED PRODUCT you want to;Customized LED Product available.
